How to easily deploy nodebb community forum on ubuntu vps
Learn how to easily deploy nodebb community forum on ubuntu vps!

This article provides a guide demonstrating how to easily deploy NodeBB community forum on Ubuntu VPS server.

What is NodeBB?

Nodebb is a fast and free community discussion board driven by websockets
Nodebb is a fast and free community discussion board driven by websockets

NodeBB is an open-source forum software platform built with Node.js. The forum offers modern, scalable, and responsive experiences. Here are some key features and characteristics of NodeBB:

  1. Real-Time Updates: With support for WebSockets, NodeBB allows real-time interactions with live-update functionalities and notifications without having to refresh the page.
  2. Plugin System: It comes with a flexible plugin architecture. Developers can extend functionality with a wide range of plugins provided for all kinds of purposes: social media integration, gamification, and much more.
  3. Responsive Design: NodeBB is built with a responsive design to extend a wonderful user experience not only in desktops but also in other mobile devices.
  4. Scalability: Built over Node.js, it is able to handle heavy loads, hence well-suited for large-sized communities.
  5. Customization: A wide array of customization features, from themes to templates, lets users entirely make the looks and feels of the forum fit their own needs and branding.
  6. User Management: User management of NodeBB is well done; one can easily control permissions and user access.
  7. SEO-friendly: How the forum has been created is just perfect for SEO—a high ranking in search engines.
  8. Open Source: As an open-source platform, NodeBB can be looked into and altered by developers who wish to contribute to modifying the code. NodeBB is often chosen for communities and businesses looking for a modern, feature-rich forum platform that is equally flexible and performant.

How to Easily Deploy NodeBB Community Forum on Ubuntu VPS

This installation guide is optimized for Ubuntu 22.04 LTS and will install NodeBB with MongoDB as the database. Fully patched LTS and equivalent production versions of software are assumed and used throughout.

System Requirements

  • Memory: Installing NodeBB’s dependencies may require more than 512 MB of system memory. It is recommended to enable a swap partition to compensate if your Linux system has insufficient memory.

Launch 100% ssd ubuntu vps from $2. 49/mo!

Installing Node.js

Naturally, NodeBB is driven by Node.js, and so it needs to be installed. Node.js is a rapidly evolving platform and so installation of the current LTS version of Node.js is recommended to make future updates seamless. The Node.js LTS Plan details the LTS release schedule including projected end-of-life.

Node.js is available from the NodeSource Ubuntu binary distributions repository.

  1. Download and import the Nodesource GPG key
sudo apt-get update
sudo apt-get install -y ca-certificates curl gnupg
sudo mkdir -p /etc/apt/keyrings
curl -fsSL https://deb.nodesource.com/gpgkey/nodesource-repo.gpg.key | sudo gpg --dearmor -o /etc/apt/keyrings/nodesource.gpg
  1. Create deb repository
echo "deb [signed-by=/etc/apt/keyrings/nodesource.gpg] https://deb.nodesource.com/node_lts.x nodistro main" | sudo tee /etc/apt/sources.list.d/nodesource.list
  1. Run Update and Install
sudo apt-get update
sudo apt-get install nodejs -y

Verify installation of Node.js and npm. You should have version lts of Node.js installed, and version 10 of npm installed:

node -v
npm -v (should output "10.2.3" or similar)

Database

Installing MongoDB

MongoDB is the default database for NodeBB. As noted in the MongoDB Support Policy versions older than 4.0 are officially End of Life as of October 2021. This guide assumes installation of 7.0. If you wish to use another database instead of MongoDB the Configuring Databases section has more information.

Official detailed installation instructions can be found in the MongoDB manual. Although out of scope for this guide, some MongoDB production deployments leverage clustering, sharding and replication for high availibility and performance reasons. Please refer to the MongoDB Replication and Sharding topics for further reading. Keep in mind that NodeBB does not require any of these advanced configurations, and doing so may complicate your installation. Keeping it simple often can be best.

The following is an abbreviation of the official MongoDB installation guide for Ubuntu. If you’re having issues, fall back to using that guide instead.

sudo apt-get install gnupg curl
curl -fsSL https://pgp.mongodb.com/server-7.0.asc | \
sudo gpg -o /usr/share/keyrings/mongodb-server-7.0.gpg \
--dearmor
echo "deb [ arch=amd64,arm64 signed-by=/usr/share/keyrings/mongodb-server-7.0.gpg ] https://repo.mongodb.org/apt/ubuntu jammy/mongodb-org/7.0 multiverse" | sudo tee /etc/apt/sources.list.d/mongodb-org-7.0.list
sudo apt-get update
sudo apt-get install -y mongodb-org

Verify installation of MongoDB. You should have version 7.0:

mongod --version
db version v7.0

Start the mongod service and verify service status:

sudo systemctl start mongod
sudo systemctl status mongod

Configure MongoDB

General MongoDB administration is done through the MongoDB Shell mongo. A default installation of MongoDB listens on port 27017 and is accessible locally. Access the shell:

mongosh

Switch to the built-in admin database:

> use admin

Create an administrative user (the is different from the nodebb user we’ll create later). Replace the placeholder <Enter a secure password> with your own selected password. Be sure that the < and > are also not left behind.

> db.createUser( { user: "admin", pwd: "<Enter a secure password>", roles: [ { role: "root", db: "admin" } ] } )

This user is scoped to the admin database to manage MongoDB once authorization has been enabled.

To initially create a database that doesn’t exist simply use it. Add a new database called nodebb:

> use nodebb

The database will be created and context switched to nodebb. Next create the nodebb user with the appropriate privileges:

> db.createUser( { user: "nodebb", pwd: "<Enter a secure password>", roles: [ { role: "readWrite", db: "nodebb" }, { role: "clusterMonitor", db: "admin" } ] } )

The readWrite permission allows NodeBB to store and retrieve data from the nodebb database. The clusterMonitor permission provides NodeBB read-only access to query database server statistics which are then exposed in the NodeBB Administrative Control Panel (ACP).

Exit the Mongo Shell:

> quit()

Enable database authorization in the MongoDB configuration file /etc/mongod.conf by appending the following lines:

security:
authorization: enabled

Restart MongoDB and verify the administrative user created earlier can connect:

sudo systemctl restart mongod

To connect to a MongoDB deployment that requires authentication, use the --username and --authenticationDatabase options. mongosh prompts you for a password, which it hides as you type.

mongosh "mongodb://hostname:port" --username admin --authenticationDatabase admin

If everything is configured correctly the Mongo Shell will connect. Exit the shell.

Installing NodeBB

First, we must install git as it is used to distribute NodeBB:

sudo apt-get install -y git

Note: commands like git and ./nodebb should not be used with root access (sudo or elevated privileges). It will cause problems with different ownership of files NodeBB needs access to

Next, clone NodeBB into an appropriate location. Here the local nodebb directory is used, though any destination is fine:

git clone -b v3.x https://github.com/NodeBB/NodeBB.git nodebb
cd nodebb

This clones the NodeBB repository from the v3.x branch to the nodebb directory. A list of alternative branches are available in the NodeBB Branches GitHub page, but only the versioned branches are stable.

NodeBB ships with a command line utility which allows for several functions. We’ll first use it to setup NodeBB. This will install modules from npm and then enter the setup utility.

./nodebb setup

A series of questions will be prompted with defaults in parentheses. The default settings are for a local server listening on the default port 4567 with a MongoDB instance listening on port 27017. When prompted for the mongodb username and password, enter nodebb, and the password that you configured earlier. Once connectivity to the database is confirmed the setup will prompt that initial user setup is running. Since this is a fresh NodeBB install a forum administrator must be configured. Enter the desired administrator information. This will culminate in a NodeBB Setup Completed message.

Note: When entering your site URL, make sure it is exactly what you plan on accessing your site at. If you plan on visiting http://example.org to open your forum, then enter exactly http://example.org.

A configuration file config.json will be created in the root of the nodebb directory. This file can be modified should you need to make changes such as changing the database location or credentials used to access the database.

Finally, you can use the cli utility to start NodeBB:

./nodebb start

Installing nginx

NodeBB by default runs on port 4567, meaning that by default you must access it using a port number in addition to the hostname (e.g. http://example.org:4567)

In order to allow NodeBB to be served without a port, nginx can be set up to proxy all requests to a particular hostname (or subdomain) to an upstream NodeBB server running on any port.

sudo apt-get install -y nginx

Verify the installation of nginx:

nginx -v

Verify that the service will run:

sudo systemctl start nginx
sudo systemctl status nginx

You should now be able to go to your site’s address in your browser and see the default Welcome to nginx! message.

Configuring nginx

NGINX-served sites are contained in a server block which are normally stored in separate files from the main nginx config (which is very rarely edited).

When installing with the ppa above, the best way to install new nginx configs is to add new files in /etc/nginx/sites-available (like /etc/nginx/sites-available/forum.example.org). You then must link these files from sites-available to sites-enabled.

The following demonstrates a typical series of commands when creating a new nginx config:

cd /etc/nginx/sites-available
sudo nano forum.example.com # config entered into file and saved
cd ../sites-enabled
sudo ln -s ../sites-available/forum.example.com

Below is an example configuration for NodeBB running on port 4567.

server {
listen 80;
server_name forum.example.com;
location / {
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header Host $http_host;
proxy_set_header X-NginX-Proxy true;
proxy_pass http://127.0.0.1:4567;
proxy_redirect off;
# Socket.IO Support
proxy_http_version 1.1;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header Connection "upgrade";
}
}

After making changes to nginx configs, you have to reload the service for changes to take effect:

sudo systemctl reload nginx

For more information, go to the configuring nginx page.

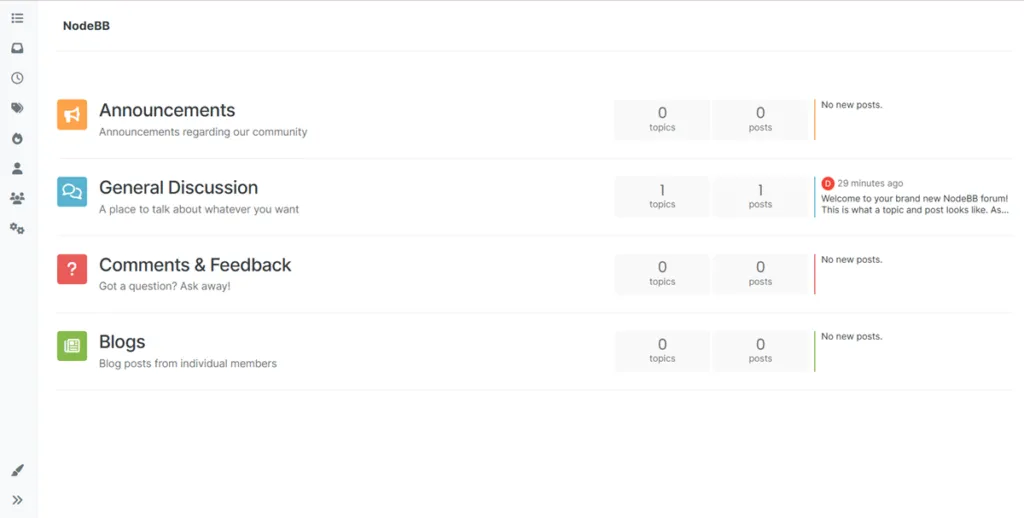

Nodebb community forum homepage
After installation, you are ready to access your own self-hosted nodebb instance.

After Installation

Great, you have NodeBB installed and running. You should be able to access http://forum.example.com and interact with your forum.

Launch 100% ssd ubuntu vps from $2. 49/mo!

Conclusion

You now know how to easily install NodeBB community forum on Ubuntu VPS. Cheers to your new self-hosted community discussion board, powered by NodeBB and Ubuntu VPS!
